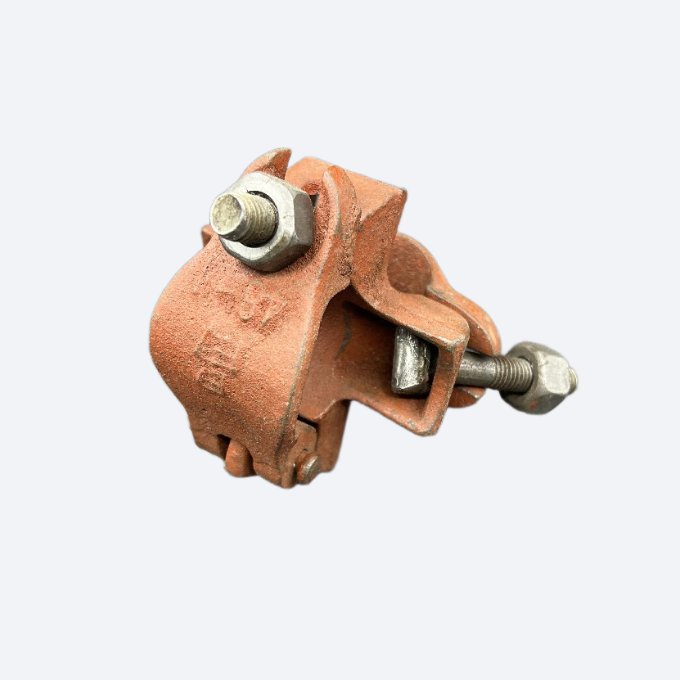

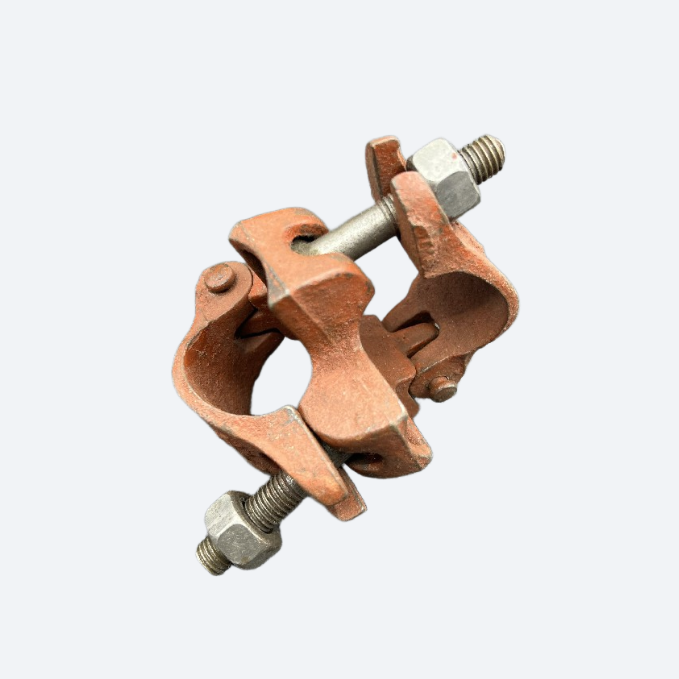

Casted Fixed Clamp

Our casted fixed scaffolding couplers adopt malleable cast iron, painted finish, weighing 0.75–1.1kg. Made per BS & EN74 standards, they fit standard 48.3/48.6mm scaffolding tubes for rigid 90° pipe connection. Ideal for light-duty temporary scaffold and indoor construction. Free samples, OEM customization and flexible shipping terms are available for global buyers.

Sample:

Available, Sample for Free

Transaction Terms:

EXW、FCA、CPT、CIP、DAP、DPU、DDP

Shipping Port:

Tianjin Port

MOQ:

50000 pieces

Weight:

0.75-1.1kg

Surface Treatment:

Painted

Material:

Steel

Suitable:

42.7mm/48.6mm/50mm/60mm tubes

Standard:

British/German

Type:

Casted fixed clamp

Model:

British/German type

Delivery time:

25 Days

Packing:

Woven bag/Ton bag/Carton/OEM/ODM

Color:

Red

Place of Origin:

China

Size:

48.6mm*48.6mm(48.3mm*48.3mm)

Inquiry

Write a Review

Key Technical Specifications

Material	Mostly malleable cast iron or ductile iron. Specialized versions for aluminum scaffolding may be made from cast aluminum.
Compatible Tube Size	Suitable for standard scaffolding tubes with an outer diameter of 48.3 mm (or 48.6 mm).
Weight	Generally lighter than heavy-duty forged couplers, ranging from 0.75 kg to 1.1 kg.
Standards Compliance	High-quality casted couplers can meet EN74 and BS1139 requirements, though they are mostly used in light-duty or non-structural applications.
Surface Treatment	Commonly electro-galvanized or painted for corrosion resistance.

Usage Considerations

Brittleness Risk

Cast iron is comparatively more brittle than forged steel. Under heavy load or sudden impact, casted couplers may crack rather than deform, potentially leading to sudden failure.

Recommended Applications

Ideal for temporary scaffolding, lightweight staging, and interior maintenance work where total loads are low and design flexibility (e.g., compatibility with various tube sizes) is required.

Maintenance Requirements

Regular inspection for cracks and rust is essential. Due to the nature of the casting process, internal micro-voids may exist, increasing the importance of routine checks.

Product Information

Benefits of Casted Fixed Couplers

Casted fixed couplers, also referred to as cast iron or ductile iron swivel couplers, are scaffolding fittings produced by pouring molten metal into preformed molds.

Although drop-forged couplers remain the industry standard for high-strength structural applications, casted couplers provide a practical alternative with greater design flexibility and distinct material characteristics.

FAQ

Q: What about after-sales service?

A: All our products are thoroughly tested before shipment, and we have a comprehensive traceability system in place. If you encounter any issues with a product, please contact our after-sales service team and provide photos and/or videos to help us diagnose the problem. We will then either arrange for a replacement or offer reasonable compensation, subject to mutual agreement.

Q: What payment terms do you accept?

A: We typically accept T/T and L/C. Other terms are also negotiable and can be discussed based on the order details.

Q: What is your MOQ?

A: Generally, our MOQ is one full container. However, for special products or specific customer needs, we are open to discussing flexible order quantities.

Q: Can we customize products with our company logo or name?

A: Yes, we offer customization options such as permanent engraving or adhesive stickers, depending on your requirements.

Q: What is your typical lead time?

A: Once the order is confirmed, Hanpiao Metal will develop a production schedule aligned with your delivery expectations and ensure all processes are carried out accordingly.

Q: Can you provide engineered drawings if needed?

A: Yes. Hanpiao Metal has a team of professional engineers experienced in designing complex scaffolding access solutions and can provide detailed engineered drawings upon request.
