Inner Unit

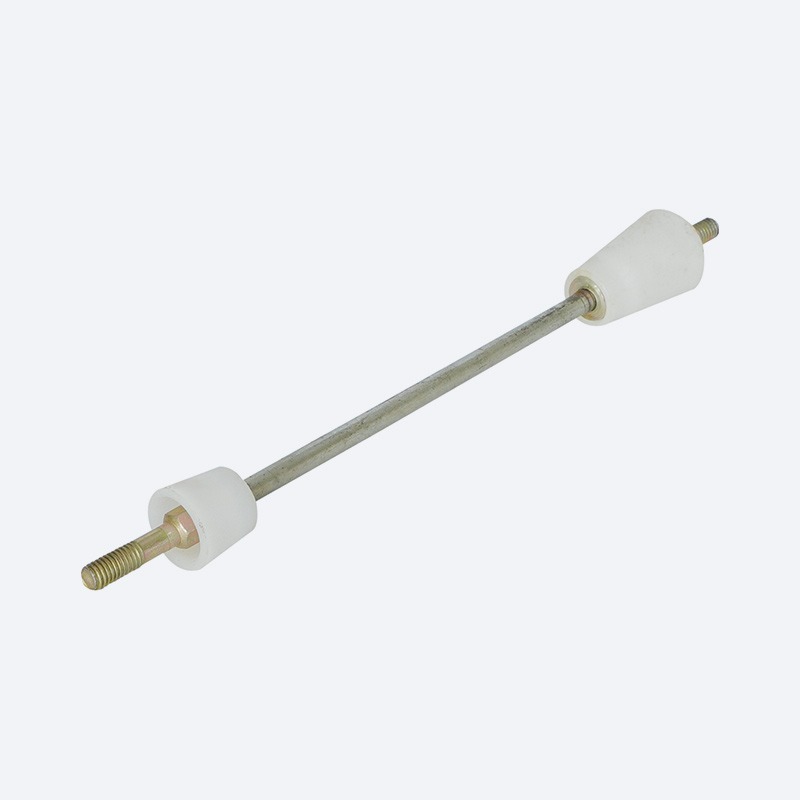

Our inner unit is the core part of D and B form tie systems, crafted from Q235 steel in two specs: D-type (10.8mm) and B-type (3/8 inch). Embedded permanently inside concrete, it precisely controls wall thickness from 100mm to 1200mm. Outer tie parts are detachable & reusable to lower construction costs. Standard sizes in stock, custom lengths are available.

Type:

Inner unit

Transaction Mode:

EXW、FCA、CPT、CIP、DAP、DPU、DDP

Model:

Thread rod

Delivery time:

Depend on the quantity of customer’s order

Packing:

Pallet

Material Science:

Q235

Color:

Silver, gold and original(black)

Minimum order quantity:

50000pcs

Place of Origin:

China

Inquiry

Write a Review

Product Information

Inner Unit for D-Form Tie System

From Hanpiao Metal

The Inner Unit (also known as inner tie rod) is the core consumable component of D-type and B-type form tie systems. It is permanently cast into concrete walls, connecting two external form ties to maintain consistent wall thickness and provide reliable tensile strength equivalent to 10.8mm – 1/2" diameter, effectively resisting lateral pressure during concrete pouring.

Key Features & Specifications

Material & Finish

Manufactured from high-carbon steel with self-color finish (non-galvanized).

Types

D-Type (standard 10.8mm diameter, 1/2" thread) and B-Type (standard 3/8" diameter).

Function

Ensures precise concrete wall thickness ranging from 100mm up to 1200mm and above, while stabilizing formwork panels.

Advantage

The inner unit stays embedded in concrete, while external form ties are detachable and reusable for cost efficiency.

Installation

Installed between two outer form ties (she-bolts) and supported by plastic cones (typically 40–50mm). Cones can be removed after concrete curing.

Components

Consists of a high-strength central rod, threaded ends for secure connection, and compatible plastic cones for positioning and easy removal.

Standard Lengths

Common lengths include 100mm, 150mm, 200mm, 250mm, 300mm and extended sizes. Custom lengths are available to meet specific wall thickness requirements.

FAQ

Q: What about after-sales service?

A: All our products are thoroughly tested before shipment, and we have a comprehensive traceability system in place. If you encounter any issues with a product, please contact our after-sales service team and provide photos and/or videos to help us diagnose the problem. We will then either arrange for a replacement or offer reasonable compensation, subject to mutual agreement.

Q: What payment terms do you accept?

A: We typically accept T/T and L/C. Other terms are also negotiable and can be discussed based on the order details.

Q: What is your MOQ?

A: Generally, our MOQ is one full container. However, for special products or specific customer needs, we are open to discussing flexible order quantities.

Q: Can we customize products with our company logo or name?

A: Yes, we offer customization options such as permanent engraving or adhesive stickers, depending on your requirements.

Q: What is your typical lead time?

A: Once the order is confirmed, Hanpiao Metal will develop a production schedule aligned with your delivery expectations and ensure all processes are carried out accordingly.

Q: Can you provide engineered drawings if needed?

A: Yes. Hanpiao Metal has a team of professional engineers experienced in designing complex scaffolding access solutions and can provide detailed engineered drawings upon request.
